STRIPESORB
Absorbent panel
Description

The STRIPESORB is a stripe-shaped acoustic treatment absorber made of selfextinguishing acoustic foam. Its shape looks similar to parallel blades with angular spaces between them. It was designed in order to have small longitudinal absorption surfaces separated by small angled incisions; its shape maximizes the area that is exposed to the sound waves for better absorption.

There are two different shapes, STRIPESORB, which is flat, and STRIPESORB ARC, which describes a concave and convex arc that wave uniformly, these can be combined to offer different decorative alternatives.

It is meant to achieve a great absorption for the budget-conscious acoustic projects. Installed by gluing it directly to the existing surface with our recommended adhesives.

The STRIPESORB is recommended for project spaces, large room environments, common workspaces, music studios, listening rooms, as well as small booths. This model can be applied on large continuous areas when mandatory and stronger acoustic absorption is required, by solving excessive reverberation problems as well as flutter echo problems.

The STRIPESORB is a stripe-shaped acoustic treatment absorber made of selfextinguishing acoustic foam. Its shape looks similar to parallel blades with angular spaces between them. It was designed in order to have small longitudinal absorption surfaces separated by small angled incisions; its shape maximizes the area that is exposed to the sound waves for better absorption.

There are two different shapes, STRIPESORB, which is flat, and STRIPESORB ARC, which describes a concave and convex arc that wave uniformly, these can be combined to offer different decorative alternatives.

It is meant to achieve a great absorption for the budget-conscious acoustic projects. Installed by gluing it directly to the existing surface with our recommended adhesives.

The STRIPESORB is recommended for project spaces, large room environments, common workspaces, music studios, listening rooms, as well as small booths. This model can be applied on large continuous areas when mandatory and stronger acoustic absorption is required, by solving excessive reverberation problems as well as flutter echo problems.

Features
  • Raw material: Melamine Foam or Regular Acoustic Foam
  • NRC: 0.81/m2 [>250Hz;<10KHz]
  • MELAMINE FOAM - Flame resistance: Euroclass B-s1, d0 (similar to old M1 France, Germany B1,GB class1, USA V0/HF1)
  • ACOUSTIC FOAM - Flame resistance: Euroclass B-s3, d1 (similar to old M1)
  • Standard Dimensions: 60x60x11cm and 120x60x11cm, STS120A and STS060A
  • Shape and design recommended for continuous surface treatment
  • Sold in pairs (STS120A and STS060A models)
  • Very easy to install
Go left
Go right
Available Finishings
Finishing
Regular foam:
Melamine foam:
Technical drawings
Product dimensions
Model Height Width Depth Weight
STS060 60 cm (23.6") 60 cm (23.6") 8 cm (3.1") 0.4 kg (0.9 lbs)
STS060/6 60 cm (23.6") 60 cm (23.6") 6 cm (2.4") 0.3 kg (0.7 lbs)
STS060A 60 cm (23.6") 60 cm (23.6") 11 cm (4.3") 0.4 kg (0.9 lbs)
STS120 120 cm (47.2") 60 cm (23.6") 8 cm (3.1") 0.8 kg (1.8 lbs)
STS120/6 120 cm (47.2") 60 cm (23.6") 6 cm (2.4") 0.6 kg (1.3 lbs)
STS120A 120 cm (47.2") 60 cm (23.6") 11 cm (4.3") 0.8 kg (1.8 lbs)
  Acoustic properties chart

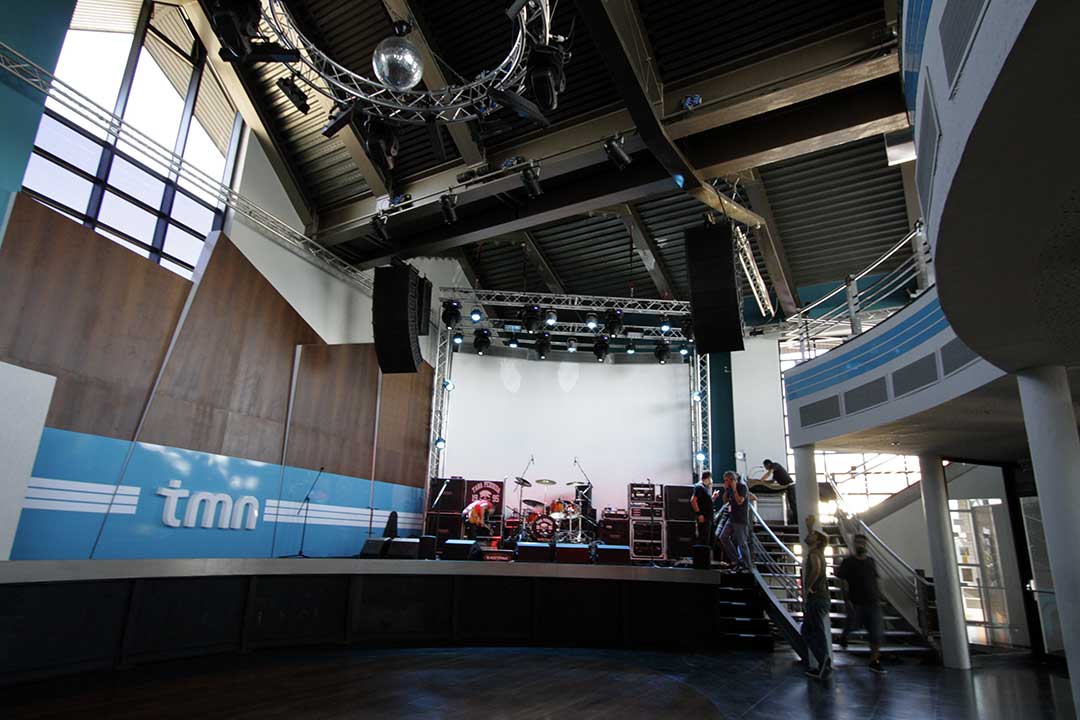

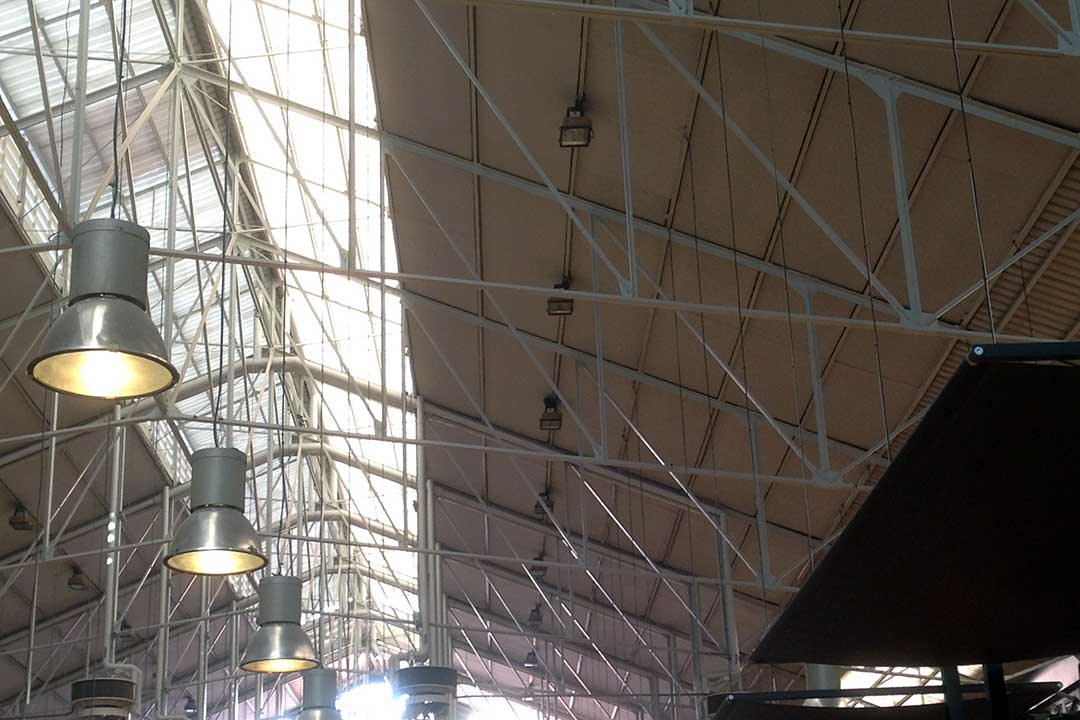

SOME PROJECTS WHERE THE STRIPESORB WAS USED
Important notices

JOCAVI™ accepts no responsibility for any printing or display errors. Specifications can be modified without prior notice, if technical or commercial reasons do so require. The colours shown on this catalogue are only a reference and an illustration of the products finishing. The colours shown are not binding because brightness, contrast and colour balance may vary due to the printing process. Colours may vary due to raw-material suppliers' changes and some differences may occur in tonal range. Due to its natural origin, wood-based products will always present natural imperfections inherent to its organic nature. For similar reasons, they will also present traces of old-age in the course of time. Wood and Fabric products are highly susceptible to changes in its appearance with humidity and temperature. Colour examples shown are only for reference. JOCAVI™ cannot guarantee that the colours represented will exactly match the colours of the products shipped, due to the variances among different monitors and printers. Some colour variation may occur between production runs of Acoustic Foam products. Colour consistency in similar products is not guaranteed, some nuances can happen. Colour fading will occur with UV exposure over time. RAL is an international independent colour standard system partner for industry, trade, architecture and design and should be consulted before placing any order. Close attention must be paid to the storage conditions and the acclimatization before, during and after the installation. Typical Indoor Comfort Standards state a temperature range of 20°C - 27°C (68°F - 81°F), and a relative humidity of less than 60%. These would be considered as normal operational levels of JOCAVI™ product range.

JOCAVI™ products are fire retardant and/or self extinguishing to varying extents. Before purchasing any of our acoustic foam products, please check with your local fire marshal or building inspector for approval. We cannot guarantee that any product meets the specific building code regulations in your area/country as regulations widely vary from place to place. JOCAVI™ will not be held liable for property damage or injuries caused by the misuse of our products.

Given the fragility and sensitivity of the raw materials used in the ATP™ product range, we advise and recommend these products are not installed within reach of physical contact by people or objects. Physical contact may damage these products.

Sizes may slightly vary (+/- 3mm) due to their production method and some inherent raw-materials characteristics. Despite all the standard sizes of all products, some models can be customised upon previous consultation. Sizes may slighty vary due to their production method and some inherent raw-materials characteristics.
